Buckle up, folks! Today, we’re diving deep into the mysterious world of the check engine light and what makes it glow like a superstar on a red carpet. Our focus? The iconic 7.3L Powerstroke engine, a powerhouse on wheels.
Now, we’ve all been there, right? That moment when you’re cruising down the highway, feeling like the king or queen of the road, when suddenly, BAM! Your car’s check engine light decides to make a grand entrance. It’s like a surprise guest at your birthday party – but not quite as welcome.
But fear not, dear drivers! We’re here to shed some light on the top 10 diagnostic trouble codes (DTCs) that can turn your smooth ride into a bumpy one. From sensor slip-ups to fuel delivery fiascos, we’ll unravel the mysteries behind those pesky codes that keep your mechanic’s phone on speed dial.
So, join us on this thrilling journey as we go under the hood, metaphorically speaking, and help reveal your 7.3L Powerstroke check engine light secrets. And hey, we’ll even throw in some expert advice on how to troubleshoot and get your trusty steed back in tip-top shape. Let’s roll!
1. Trouble Code P1211: ICP Pressure Above/Below Desired
Imagine this: You’re all set for a road adventure, but your engine seems to have hit a performance plateau. Hard starting and poor performance are your new co-pilots. Don’t fret; we’ve got your back!
Symptoms: Hard starting, poor performance that could give a snail a run for its money.
Common Fixes: Swap out that ICP sensor, hunt for leaks in your high-pressure oil system, and give your oil quality and level some much-needed TLC.
2. Trouble Code P0470: Exhaust Back Pressure Sensor Circuit Malfunction
Have you been feeling the pinch at the pump lately? A lack of power and reduced fuel efficiency could be your engine’s way of asking for help.
Symptoms: Reduced fuel efficiency and a power loss that’s got your engine crying out for more oomph.
Common Fixes: Time to roll up your sleeves and either clean or swap that Exhaust Back Pressure (EBP) sensor. Don’t forget to check the tube leading to it for any stubborn clogs.
3. Trouble Code P0344: Camshaft Position Sensor Circuit Intermittent
You’re revving up for a smooth drive, but your engine’s playing hard to get with stalling and starting difficulties.
Symptoms: Stalling and starting struggles that can turn your joyride into a joyless ride.
Common Fixes: Swap out that camshaft position sensor, and give your wiring and connectors a thorough inspection.
4. Trouble Code P0603: Internal Control Module KAM Error
This one’s a bit sneaky, often lurking without any noticeable symptoms, but it can wreak havoc in the long run.
Symptoms: It’s like a ninja in the night – often symptomless but causing behind-the- scenes chaos.
Common Fixes: Check those battery connections, be on the lookout for any aftermarket tuners or programmers, and if all else fails, consider a reset or replacement of the PCM (Powertrain Control Module).
5. Trouble Code P0472: Exhaust Pressure Sensor Low
Feeling like your engine’s gasping for breath? Performance issues and abnormal exhaust emissions are a telltale sign.
Symptoms: Performance blues and an exhaust that’s singing a different tune.
Common Fixes: Swap out the exhaust pressure sensor and play detective to find any blockages in that sensor tube.
6. Trouble Code P1249: Wastegate Control Valve Performance
Turbo trouble? Lack of power and a turbo that’s slacking off on the job could be the issue.
Symptoms: A power vacuum and a turbo that’s decided to take a vacation.
Common Fixes: Give your wastegate a performance check, and make sure those vacuum lines and solenoids are playing nice.
7. Trouble Code P1280: ICP Circuit Out of Range Low
Your engine’s feeling a bit rough around the edges? Reduced power and a bumpy ride are definite red flags.
Symptoms: Rough running and a power drop that’s leaving you in the slow lane.
Common Fixes: Swap out that ICP sensor, look out for oil leaks, and inspect your wiring like a pro.
8. Trouble Code P1316: Injector Circuit/IDM Codes Detected
A misfire and a rough idle have crashed your driving party? Let’s get to the bottom of it!
Symptoms: A misfire that’s throwing off your groove and making your idle far from smooth.
Common Fixes: Check for loose wiring or connections, replace those cranky injectors, and don’t forget to give the Injector Driver Module (IDM) a once-over.
9. Trouble Code P1212: ICP Voltage Not at Expected Level
Hard starts and lackluster performance are putting a damper on your driving experience.
Symptoms: Starting woes and a performance dip that’s got you feeling down.
Common Fixes: Inspect that ICP sensor, be on the hunt for high-pressure oil leaks, and make sure your oil viscosity is up to snuff.
10. Trouble Codes P0261, P0264, P0267, P0270, P0273, P0276, P0279, P0282: Injector Circuit Low
We’ve got a surprise for you – not one, but eight trouble codes, all related to those finicky injectors. If your engine is doing a jittery dance, misfiring, rough idling, or experiencing an unexpected power outage, these codes might be the culprits.
Symptoms: Picture your engine as a temperamental artist having a bad day – it’s misfiring, idling like it’s got a grudge, and losing power in the middle of its performance.
Common Fixes: Here’s your toolkit – check for any loose or wounded wiring, swap out those defiant injectors that refuse to play nice, and give the injector control pressure (ICP) sensor a good once-over. Your engine might just thank you with a smoother performance.
While we’ve decoded these trouble codes and offered some savvy solutions, remember that a professional mechanic is your ultimate co-pilot, especially when tackling the complex 7.3L Powerstroke engine. Regular maintenance and timely repairs are your keys to a smoother road ahead. So, rev up your engine knowledge, and let’s hit the road with confidence!

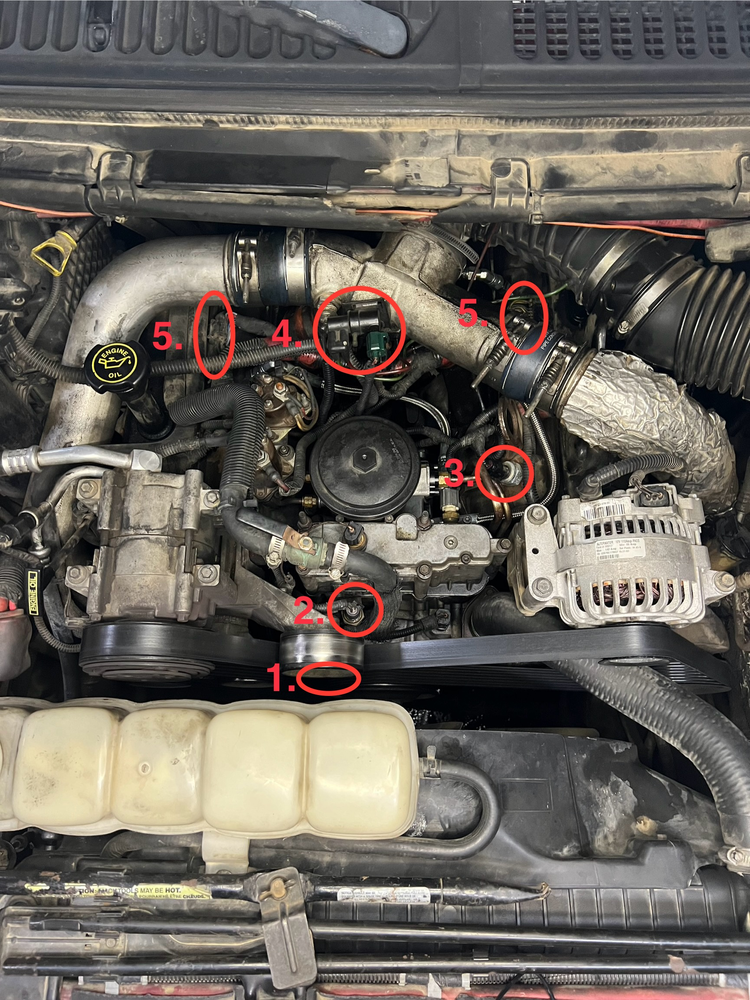

Camshaft Position Sensor: (can’t see in the photo) Located on the front of the engine, at about the 10 o’clock position relative to the Harmonic Balancer.
Exhaust Back Pressure Sensor: Located on the top-front side of the engine, attached to an access cover for the HPOP gear.
Injection Control Pressure (ICP) Sensor: Driver side cylinder head, front of the engine, located directly behind the Alternator.
Wastegate Boost Control Solenoid: Center of the Engine, towards the firewall, mounted on the Intake Plenum.
Under Valve Cover Harness (UVCH) Connector: Located on the left and right side of the engine valley, towards the rear of the engine.
